Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2022

Warranty of core components: 1 Year

Core Components: Motor

Condition: New

Voltage: 220/380V

Power: base on capacity

Weight: 100 KG

Dimension(L*W*H): base on capacity

Warranty: 1 Year

Application: Fruit Vegetable

Name: Juice Extractor

Material: Stainless Steel

Capacity: customized

Apply to: Food Industrial Commercial

Usage: Juice making

After Warranty Service: Video technical support

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Wooden Case/Foam Plastic Foam

Supply Ability: 10 Piece/Pieces per Month

Descrizione di prodotto

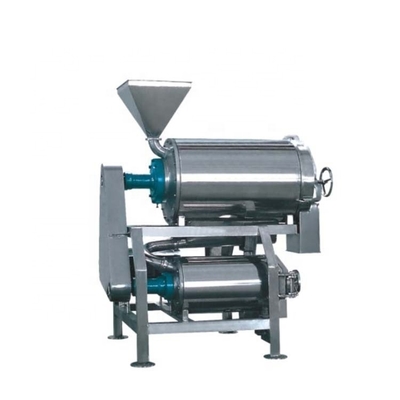

Commercial Small Fruit Juice Production Machine Fruit Juice Processing Machinery

We can provide good quality of juice processing line, from 500L/H-5,000L/H.

Given the huge variety of different applications and customer requirements, most of the equipment is customized to meet individual customer needs.

No.	Machine	Description
1	Bubble cleaner	ØMaterial: stainless steel SUS 304 ØBubbling structure ØParallel multiple rows high pressure nozzle ØHigh pressure bubbling fan
2	Manual picking and conveyor	ØSmooth convey belt ØSUS304 square tube frame 75x45x3 ØChain drive mechanism ØControl:Manual ØMotor power:0.37KW mechanical speed regulator
3	Elevator	ØSmooth conveyor belt with baffle ØMaterial: stainless steel SUS 304 ØSUS304 square tube frame:75x45x3 ØChain drive mechanism ØControl:Manual
4	Crushe	ØMachine parts that contact with material is made of stainless steel SUS304 ØMultiple cross blade structure can effectively improve the extraction rate of original sauce
5	Juice Extractor	ØMachine parts that contact with material is made of stainless steel SUS304 ØScrew extrusion structure Øcold pressing process was designed at room temperature to reduce the loss of nutrients
6	Screw pump	ØAdopt forced transportation mode ØMaterial: stainless steel SUS 304 ØControl:Manual
7	High shear Mixing Tank	ØMaterial: stainless steel SUS 304 ØThree layer construction ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer
8	Blending Tank	ØMaterial: stainless steel SUS 304 ØThree layer construction with conical top and bottom ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer
9	Double filter	ØLarge filtration capacity, small volume and large contamination capacity ØEasy replacement of filter ØFilter screen can be used repeatedly after cleaning
10	Buffer Tank	ØMaterial: stainless steel SUS 304 ØThree layer construction with conical top and bottom ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer
11	Homogenizer	ØTwo-pole mechanical voltage regulation, easy to adjust, safe and reliable ØPiston is made of wear resistant material Øfirst-order transmission mode, with smooth operation, low power loss and low noise ØMajor parts are made of stainless steel and corrosion resistant alloy,which meets the requirements of food hygiene
12	High position tank	ØMaterial: stainless steel SUS 304 ØThree layer construction with conical top and bottom ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer ØStainless steel ladder
13	Centrifugal Pump	ØStainless steel SUS 304
14	Installation Fittings

1.Capacity: 500 L/H -5000 L/H

2.Raw Material: apple/cherry/strawberry/tomato,etc

3.Required working environment: cleaning,flat gound without violent vibration and striking

4.Temperature: 10-40℃

5.Electricity:Voltage:AC380V±10%

6.Frequency:50hHz±2%

Features:

1.Good quality SS 304/316L material

2.Whole processing line from fruit washing to juice processing
